Robust Cat Main Engines for Commercial Shipping

Cat Main Engines: Optimal Performance, Minimal Emissions

Our Cat main engine motors are known for their robust performance and reliability. Designed for use in demanding maritime environments, they offer exceptional fuel efficiency and low emissions. With their high power density and durability, our diesel engines ensure consistent, powerful propulsion, which is crucial for the safe and efficient operation of vessels of all sizes.

If you have any questions, we are happy to assist with selecting the right engine or integrating the propulsion systems into existing setups.

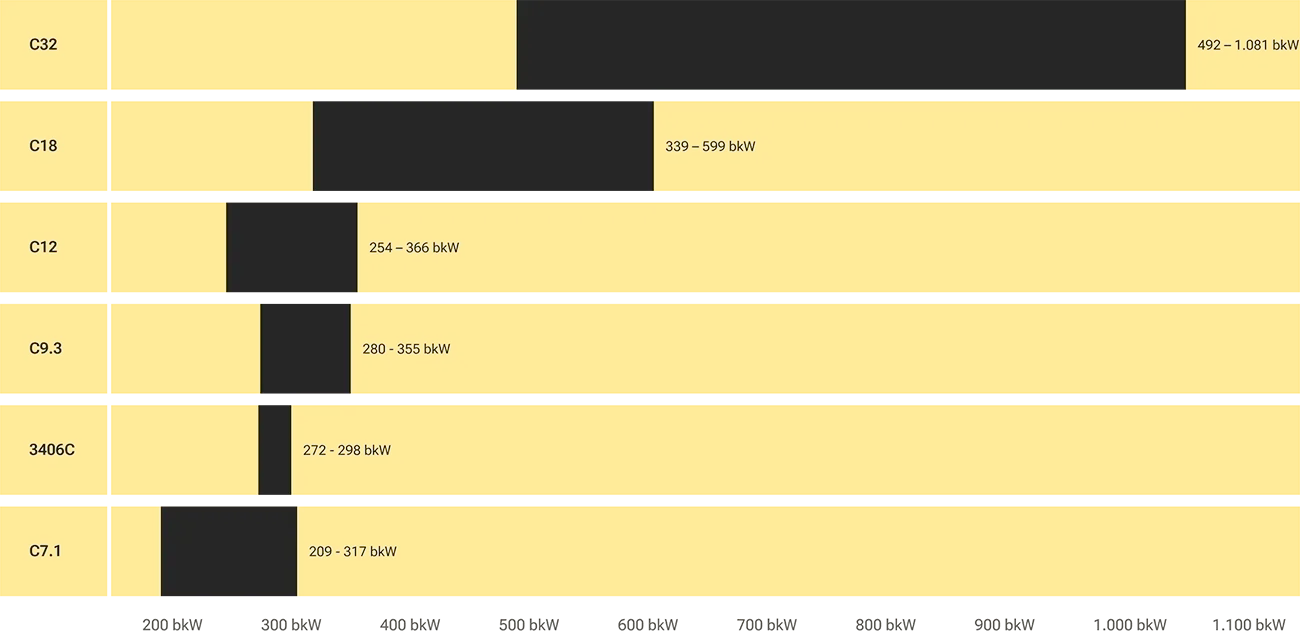

Power Overview for Main Propulsion Engines 209 - 1,081 bkW

Technical Specifications

Engine Type	Power in bkW	Speed range RPM	Emissions	Exhaust Gas Aftertreatment	Configuration	Displacement in liters	Bore in mm	Stroke in mm	Flywheel housing	Cooling	Intake system	Dimensions in mm	Weight in kg (dry)
C7.1	209 - 317	2.300 - 2.700	IMO II	-	Six-cylinder four-stroke inline diesel engine	7,1	105	135	SAE-Nr. 3	Heat exchangers or keel cooling	Turbocharging – Intercooling	1.095 x 876 x 798	760
3406C	272-298	1.800	-	-	Six-cylinder four-stroke inline diesel engine	14,6	137	165	SAE-Nr. 0 - 1	Heat exchangers or keel cooling	Turbocharging – Intercooling	1.454 x 1.278 x 914	1.325
C9.3	280 - 355	1.800 - 2.300	IMO II	-	Six-cylinder four-stroke inline diesel engine	9,3	115	149	SAE-Nr. 1	Heat exchangers or keel cooling	Turbocharging – Intercooling	1.452 x 1.093 x 978	945 - 1.122
C12	254 - 366	1.800 - 2.300	IMO I, IMO II	-	Six-cylinder four-stroke inline diesel engine	12	130	150	SAE-Nr. 1	Heat exchangers or keel cooling	Turbocharging – Intercooling	1.574 x 1.005 x 969	1.174
C18	339 - 599	1.800 - 2.100	IMO II, EU V	IMO II: without, EU V: DPF/SCR	Six-cylinder four-stroke inline diesel engine	18,1	145	183	SAE-Nr. 0 - 1	Heat exchangers or keel cooling	Turbocharging – Intercooling	1.854 - 1.931 x 1.198 - 1.300 x 1.134 - 1.204	1.814 - 1.950
C32	492 - 1.081	1.800 - 2.300	IMO II, IMO III, EU V	IMO II: without, IMO III: SCR, EU V: DPF/SCR	V12 four-stroke diesel engine	32,1	145	162	SAE-Nr. 00 - 0	Heat exchangers or keel cooling	Turbocharging – Intercooling	2.121 - 2.284 x 1.547 - 1.587 x 1.528	3.152 - 3.248

Do you have any questions about our main propulsion engines? We are happy to assist you.

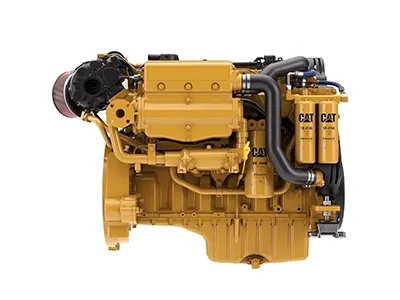

Cat Engines C7.1 - C32: Powerful and adaptable for any vessel size

Our Cat main propulsion engines C7.1, 3406C, C9.3, C12, C18, and C32 offer reliability, fuel efficiency, and adaptability for various maritime applications. From the compact C7.1 for smaller workboats to the powerful C32 for large cargo ships, these engines cover a wide range of needs. They are ideal for fishing boats, offshore tugboats, and cargo vessels. Additionally, all engines can be equipped with advanced exhaust gas after-treatment systems to reduce emissions and meet stringent environmental regulations, making them an eco-friendly choice in the maritime sector.

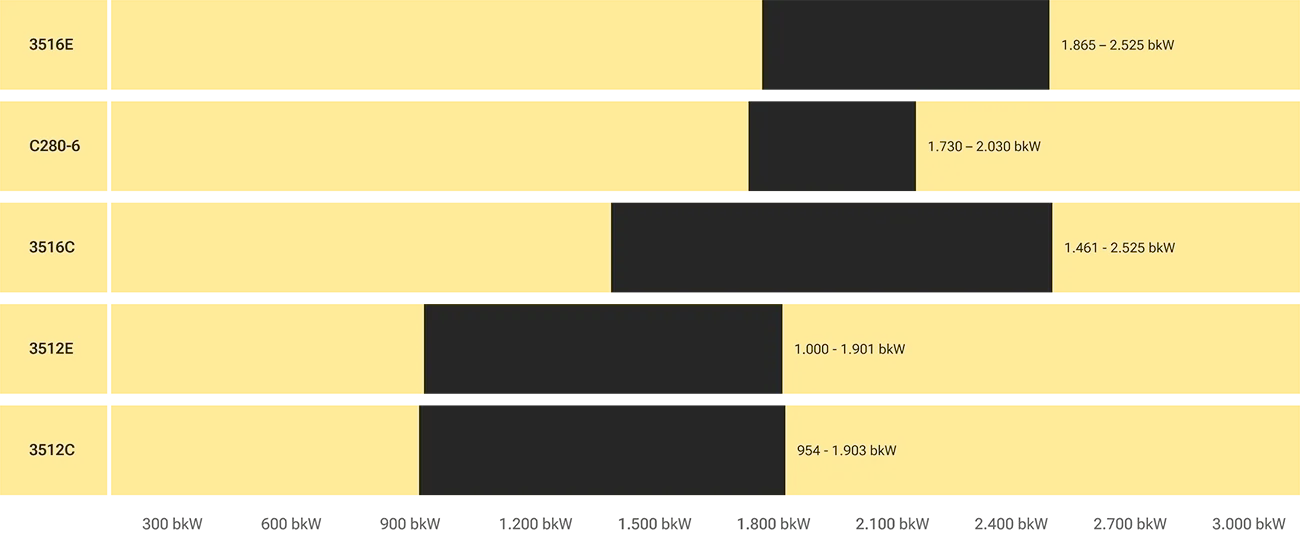

Power Overview for Main Propulsion Engines 954 - 2,525 bkW

Technical Specifications

Engine Type	Power in bkW	Speed range RPM	Emissions	Exhaust Gas Aftertreatment	Configuration	Displacement in liters	Bore in mm	Stroke in mm	Flywheel housing	Cooling	Intake system	Dimensions in mm	Weight in kg (dry)
3512C	954 - 1.903	1.200 - 1.800	IMO II	-	V12 four-stroke diesel engine	51,8 - 58,6	170	190 -215	SAE-Nr. 00 - 0	Heat exchangers or keel cooling	Turbocharging – Intercooling	2.590 - 2.669 x 1.904 - 2.242 x 1.037 - 2.232	6.532 - 7.411
3512E	1.000 - 1.901	1.600 - 1.800	IMO II, IMO III, EU V	IMO II: without, IMO III: SCR, EU V: DPF/SCR	V12 four-stroke diesel engine	58,6	170	215	SAE-Nr. 00	Heat exchangers or keel cooling	Turbocharging – Intercooling	2.324 x 2.223 x 2.037	7.488
3516C	1.461 - 2.525	1.600 - 1.800	IMO II	-	V16 four-stroke diesel engine	69 - 78	170	190 - 215	SAE-Nr. 00	Heat exchangers or keel cooling	Turbocharging – Intercooling	3.637 - 3.761 x 1.967 - 2.150 x 2.037 - 2.142	7.964 - 8.629
C280-6	1.730 - 2.030	900 - 1.000	IMO II	-	Six-cylinder four-stroke inline diesel engine	111	280	300	-	Heat exchangers or keel cooling	Turbocharging – Intercooling	4.276 x 3.691 x 2.733	15.680
3516E	1.865 - 2.525	1.600 - 1.800	IMO II, IMO III	IMO II: without, IMO III: SCR	V16 four-stroke diesel engine	78	170	215	SAE-Nr. 00	Heat exchangers or keel cooling	Turbocharging – Intercooling	3.192 x 2.225 x 2.284	9.600

Do you have any questions about our main propulsion engines? We are happy to assist you.

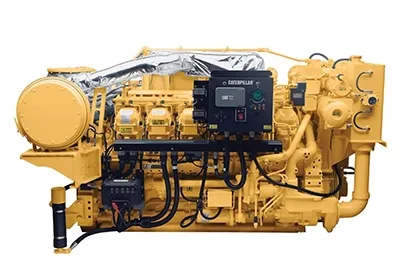

Clean and powerful shipping with our Cat engines 3512C - 3516E and C280-6

Our Cat main propulsion engines 3512C, 3512E, 3516C, C280-6, and 3516E are known for their outstanding performance, durability, and efficiency. These engines are particularly designed for large vessels and demanding maritime applications. The 3512C and 3512E are ideal for tugboats and workboats, while the 3516C and 3516E are perfect for larger cargo ships, passenger ferries, and offshore supply vessels. The C280-6 is optimal for heavy cargo ships and cruise ships that require high performance and reliability.

These engines not only provide immense propulsion power but can also be equipped with advanced exhaust gas after-treatment systems to meet emission standards and minimize the environmental footprint.

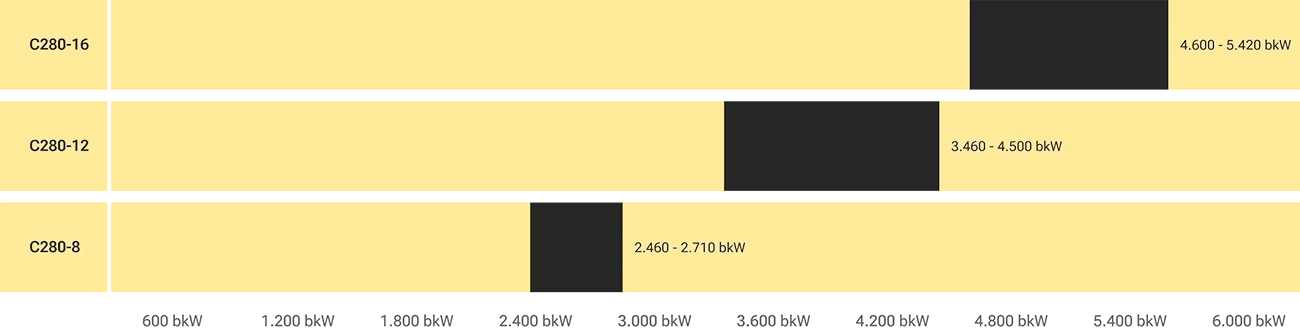

Power Overview for Main Propulsion Engines 2,460 - 5,420 bkW

Technical Specifications

Engine Type	Power in bkW	Speed range RPM	Emissions	Exhaust Gas Aftertreatment	Configuration	Displacement in liters	Bore in mm	Stroke in mm	Flywheel housing	Cooling	Intake system	Dimensions in mm	Weight in kg (dry)
C280-8	2.460 - 2.710	900 - 1.000	IMO II, IMO III	IMO II: without, IMO III: SCR	Eight-cylinder four-stroke inline engine	148	280		-	Heat exchangers or keel cooling	Turbocharging – Intercooling	4.953 x 2.642 x 1.803	19.000
C280-12	3.460 - 4.500	900 - 1.000	IMO II, IMO III	IMO II: without, IMO III: SCR	V12 four-stroke diesel engine	222	280	300	-	Heat exchangers or keel cooling	Turbocharging – Intercooling	4.623 x 3.404 x 2.032	25.980
C280-16	4.600 - 5.420	900 - 1.000	IMO II	-	V16 four-stroke diesel engine	296	280	300	-	Heat exchangers or keel cooling	Turbocharging – Intercooling	5.482 x 1.704 x 3.171	28.500

Do you have any questions about our main propulsion engines? We are happy to assist you.

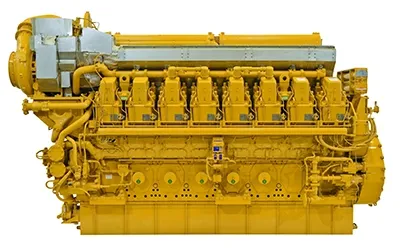

The Cat engines C280-8, C280-12, and C280-16 guarantee high performance for large vessels

The Cat main propulsion engines C280-8, C280-12, and C280-16 are known for their high performance, reliability, and efficiency. These engines from Caterpillar offer impressive power density, making them particularly suitable for large vessels and demanding maritime applications. The C280-8 is ideal for medium-sized vessels such as container ships and tankers, while the C280-12 and C280-16, with their even higher performance and robustness, are excellent choices for large cruise ships.

Our engines are known for their long lifespan and low maintenance requirements, making them a reliable choice for continuous operation in challenging maritime environments. These engines are also equipped with advanced exhaust gas after-treatment systems to comply with stringent emission regulations and help reduce environmental impact.

Key benefits for your organization

High-performance propulsion systems

With Cat engines, our customers benefit from outstanding reliability, efficiency, and power, making them ideal for a variety of maritime applications, from cargo ships to cruise ships.

Innovative Technologies

Our propulsion solutions and exhaust gas after-treatment systems comply with the latest emission standards, contributing to regulatory compliance and reducing the environmental footprint.

Comprehensive service offering

Zeppelin Power Systems offers tailored services, including consulting, installation, maintenance, and fast repairs. This ensures smooth operations and minimizes downtime for your fleet.

Extensive expertise and global network

With our decades of experience in the maritime industry, we have extensive expertise and a deep understanding of the specific requirements of the sector. Our global support and service network ensures that our customers receive fast and knowledgeable assistance anywhere in the world.

Clean and powerful performance with our Cat high-performance drives

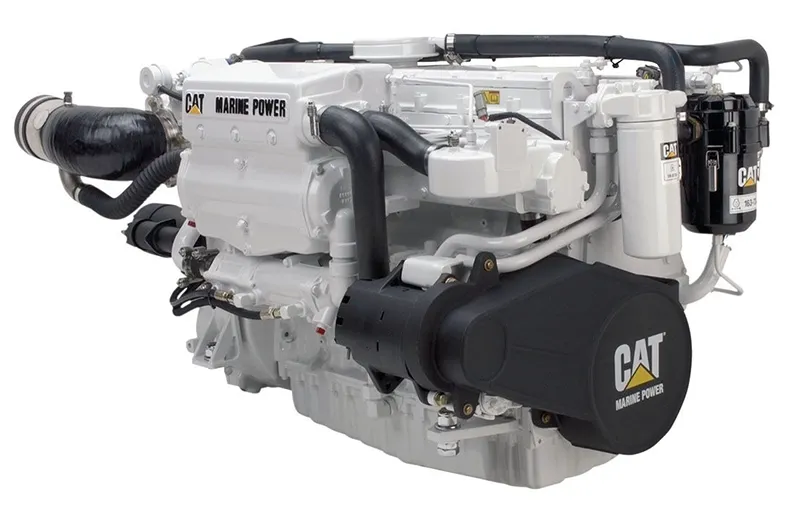

Customized solutions for demanding vessels

Our high-performance marine engines from Cat offer outstanding performance, reliability, and efficiency, making them ideal for demanding maritime applications such as mega and luxury yachts. They provide excellent maneuverability, fast response times, and reliable operation even under extreme conditions. Our high-performance drives excel in fuel efficiency, deliver high torque at low speeds, and feature advanced exhaust gas after-treatment systems that comply with the latest emission standards.
